Patio Doors Inwards Opening

LID2454, Inward Opening Patio Door 2+1 Glazing, Double Frame

Frame thickness:
245 mm
Sound reduction:
60 - 69 dB
U-value:
0,8 W/m²K
Download as pdf

LEIAB can offer a new concept consisting of double frames in order to achieve very high levels of noise reduction. Virtually all of our models are available for the outer window or patio door. An inner window or patio door, made without the aluminium frame, is then fitted inside the outer product, creating a double frame solution. Using this system we can offer noise reduction of over 60 dB.

 Even using standard glass the noise reduction is substantial, meaning that the need for heavy laminated specialty glass is often eliminated. The outer and inner products are fitted seperately, with a minimum distance of 250 mm between them to ensure that maximum noise reduction is achieved. They can also be fitted wider apart if desired. We have performed sound tests on distances between 170-300 mm.

 Both units open separately. For the standard option both units are either inward opening with the outer sash passing the inner frame, or with the outer unit opening outward and the inner product opening inwards.

LID2454 consists of LID951 + LID561 including MDF-board between the two frames.

Product images

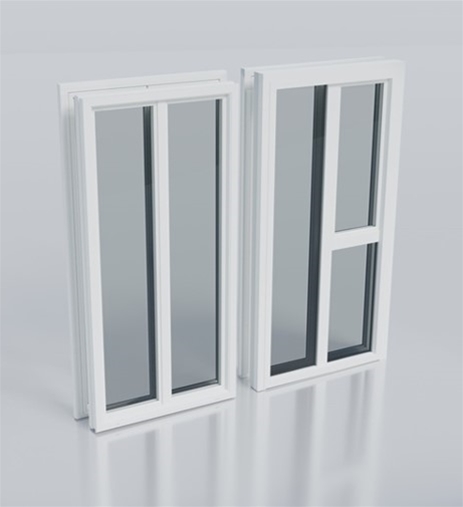

Original configuration

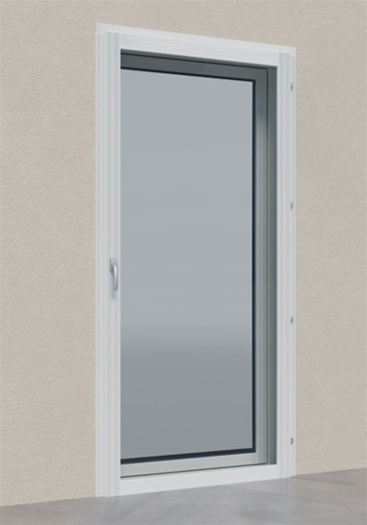

Dubbelkarm utsida Double Frame

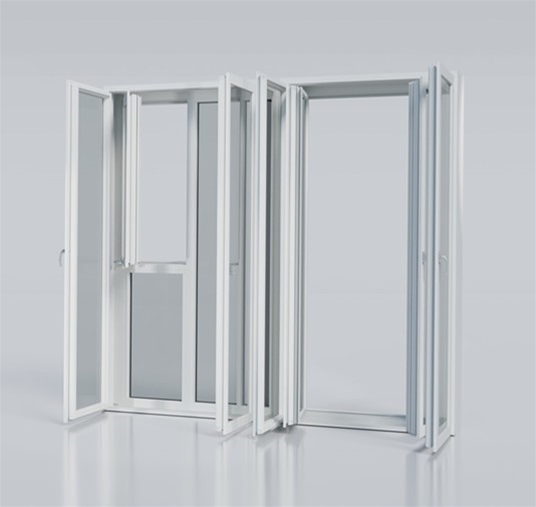

Multi-light windows and accessories

Double Frame in Material Store Double Frame in Material Store


Files

Drawings Stil

  File name Size Download
MP-LID2454.2_212.pdf 1232 kb Download
MP-LID2454.2_212_AC.dwg 612 kb Download

References

Project name Maiden Lane
Client John Sisk & Son Ltd
Location/town London
Window model Stil
Project name Material Store
Client Invest Mag Ltd.
Location/town London
Window model Royal
